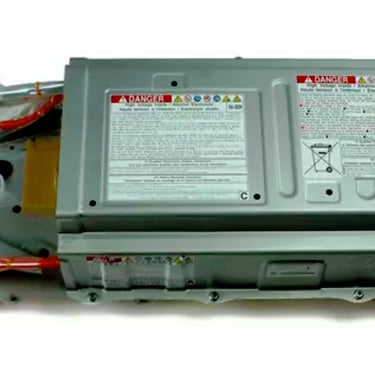

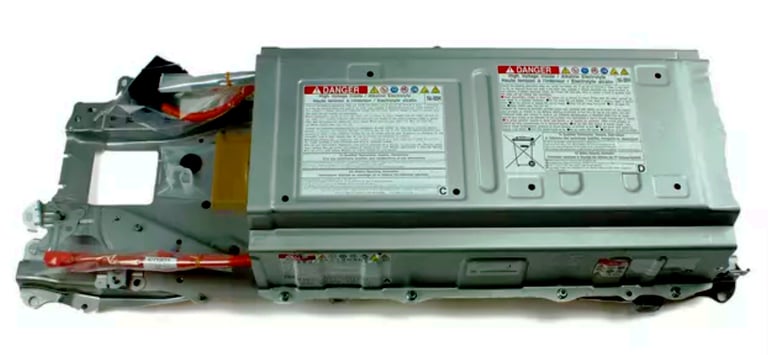

New OEM Prius C Battery
$2,795.oo + Tax 5-Year/100K mile Warranty
*Includes hybrid battery fan & ducts system cleaning
Toyota Prius C Production Year 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Battery Pack
Modules: 20
Nominal Voltage per Module: 7.2 volts
Total Nominal Voltage: 144 volts
Type: Nickel-Metal Hydride (NiMH) prismatic battery
Manufacture: Panasonic/Primearth EV Energy Co., Ltd. [1][8]
Powertrain
Internal Combustion Engine (ICE)
Displacement: 1.5 liters
Cylinders: 4
Horsepower: 73 hp @ 4800 rpm
Torque: 82 lb-ft @ 4000 rpm [1][7]
Electric Motor
Horsepower: 26 hp (45 kW)
Combined System Output: 99 hp (74 kW) [1][7]
Hybrid System Functionality
The high-voltage battery pack stores electrical energy for the electric motor, allowing electric-only driving under certain conditions and assisting the gasoline engine during acceleration to improve fuel efficiency and reduce emissions. The Prius c offers three distinct drive modes: Normal, Eco, and EV mode. Eco mode reduces overall energy consumption by governing climate control and throttle to improve vehicle efficiency. Under certain conditions, the EV mode allows the Prius c to be driven solely by electric power for a short distance (under 1 mile) while remaining below 25 mph [1].
Additional Information on Prismatic NiMH Battery NP2.0
Output Density: 1,300 W/kg
Energy Density: 46 Wh/kg
Nominal Voltage: 7.2V
Nominal Capacity: 6.5Ah
Output: 1350W
Weight: 1040g
Outer Dimensions (mm): 19.6(W) × 106(H) × 285(L) [8]
Summary
The Toyota Prius c is equipped with a 1.5-liter, four-cylinder gasoline engine and an electric motor, providing a combined system output of 99 horsepower. The vehicle uses a 144-volt NiMH battery pack, which is composed of 20 prismatic modules, each with a nominal voltage of 7.2 volts. The battery pack is manufactured by Panasonic/Primearth EV Energy Co., Ltd. The hybrid system allows for electric-only driving under certain conditions and assists the gasoline engine to enhance fuel efficiency and reduce emissions.
Citations
[1] https://pressroom.toyota.com/toyota-prius-c-completes-prius-family-vehicles/
